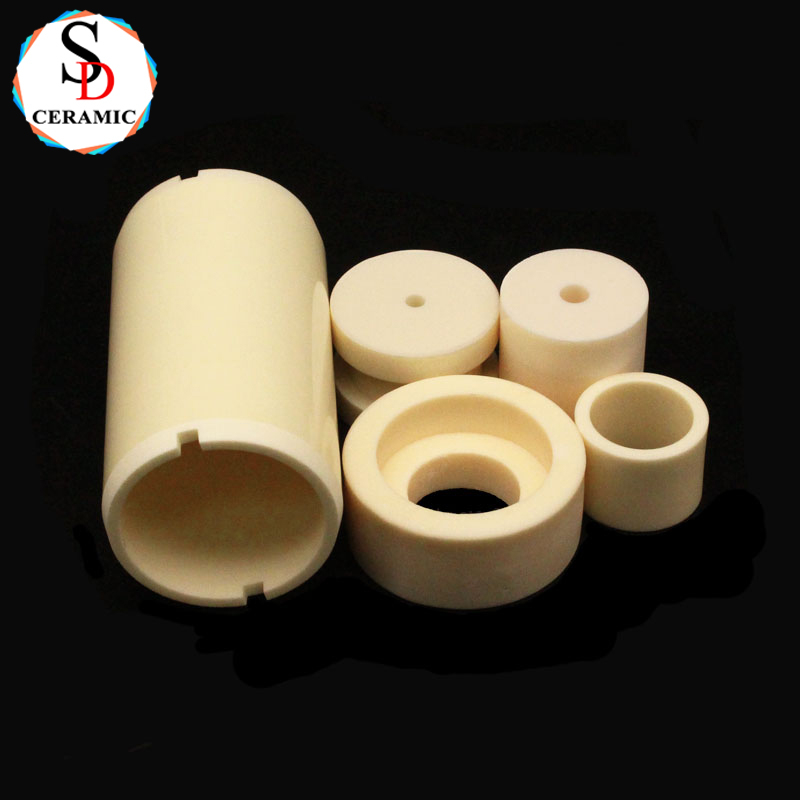

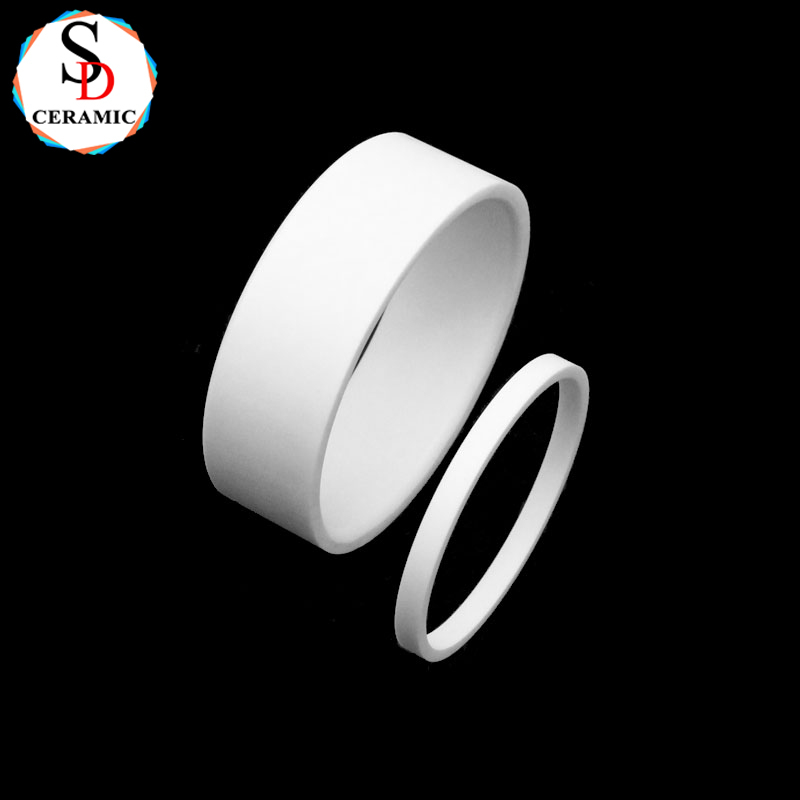

Technical Advance Precision Ceramic Bushing Sleeves Liner Series
Customization Options
✔ Material Science Expertise: Ultra-fine ceramic powders for enhanced fracture toughness
✔ Custom Engineering: Laser scanning for demanding bore concentricity
✔ Cost Savings: ROI achieved in a short time via reduced replacement/labor costs
Email Us WhatsApp
High-Performance Technical Ceramic Bushings | Sleeves | Liners for Industrial Applications
Our precision-engineered Alumina/Zirconia Ceramic Bushings, Sleeves, and Liners deliver unmatched wear resistance, corrosion immunity, and thermal stability for extreme industrial environments. Manufactured with 99%+ pure advanced ceramics, these components outperform metal alternatives in lifespan (3-5X longer) and operational efficiency.
Four Industrial Application Cases
1. Mining & Mineral Processing
- Problem: Metal sleeve bearings failed every 3 months in slurry pumps due to abrasive quartz particles.
- Solution: Installed low-clearance Alumina Ceramic Sleeve Bearings.
- Result: Extended service life and reduced downtime.
2. Chemical Processing Pumps
- Challenge: HF acid corroded stainless steel liners in 6 weeks.
- Upgrade: Zirconia Ceramic Liners with Isostatic Pressing treatment.
- Outcome: High corrosion resistance greatly increases the service life.
3. Food/Beverage Conveyor Systems
- Requirement: USDA-compliant, bacteria-resistant bearing surfaces.
- Implementation: Ultra-smooth 99.7% alumina ceramic bushings.
- Benefit: Achieve CIP/SIP cleaning and effectively reduce product contamination.
4. Semiconductor Wafer Handling
- Precision Need: ±5μm positioning accuracy in vacuum robots.
- Solution: Precision-Ground Zirconia Sleeves with low runout tolerance.
- Yield impact: Significantly reduced particle generation vs. PEEK components.
Features
1) A variety of specifications available.
2) High hardness, High strength, Good insulation performance
3) Corrosion resistance, Wear resistance, High temperature resistance
Properties | Units | Steatite Ceramic | Cordierite Ceramic | Mullite Ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic | Silicon Nitride |
Colour | White | Yellow | White | White | Ivory | White | Grey | |
Density | g/cm3 | 2.7 | 1.9 | 2.6 | 3.5 | 3.85 | 6 | 3.2 |
Flexural Strength | Mpa | 140 | 30 | 120 | 280 | 340 | 1150 | 600 |
Compressive Strength | MPa | 900 | 350 | 500 | 2100 | 2200 | 2500 | 2500 |
Max Use Temperature | °C | 1000 | 1200 | 1300 | 1400 | 1650 | 1500 | 1800 |
Thermal Condutivity | W(m.K) | 2~3 | 1.3~1.8 | 2~6 | 16~28 | 19~30 | 2.5 | 20 |
Thermal Expansion Cofficient | 10-6/°C | 7 ~ 9 | 1.5~3.5 | 5~6 | 6.5~7.5 | 6~8 | 8~10 | 3~4 |
ThermalShock Resistance | △TC | 100 | 300 | 150 | 140 | 150 | 250 | 600 |
Specific Heat | J/kg.K | 850 | 800 | 900 | 950 | 950 | 500 | 500 |
Dielectric Strength | KV/mm | 20 | — | 30 | 12 | 10 | 5 | 20 |
Dielectric Constant | Er | 6 | — | 8 | 9 | 9 | 12 | 6 |
Product Advantages
● Certificates: ISO & SGS
● OEM & ODM: OEM & ODM service is available
● Strict testing procedures :Meeting the requirements of the product design and process, providing reliable testing data.
● Short Delivery time:If less than 1000 pieces, it only takes around 5 days. We also stock some standard-sized products, if you need urgently, we can delivery very soon.
● Best ex-factory price
● Worldwide customers
● Customized according to needs
● Continuous research and development of new products
● Customer service:If you find some quality problem, please contact us, we’ll deal with it as soon as possible.
Our customers have a wide range of processing choices for transportation mode.
Yixing Shengda Refractory Ceramic Co., Ltd, established in 1995, Yixing, China with an area of 4,000 square meters and fixed assets of over 1 million US dollars, is a professional manufacturer of Steatite Ceramic Parts, Alumina Ceramic Parts, Cordierite Ceramic Parts, Ceramic Band Heater Insulators, Ceramic Terminal Block, Thermostat Ceramic Parts, Zirconia Ceramics Parts, Ceramic Heater Plugs, etc.
Shengda Ceramic equipped with CAD/CAXA/Solidworks software to provide professional OEM & ODM service.
Looking forward to co-operating with the customers from all over the world!
