Product Description

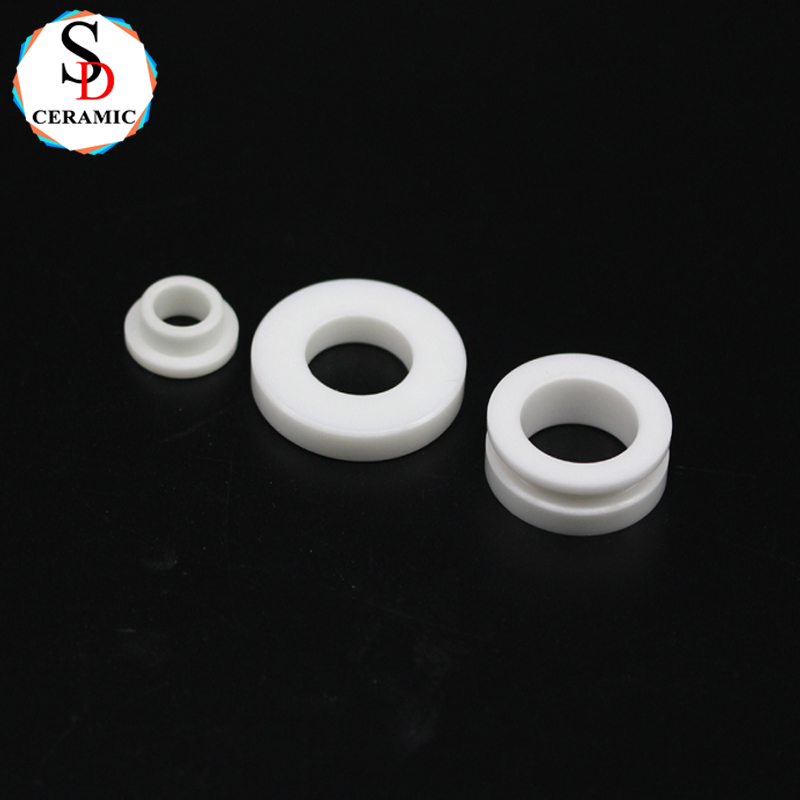

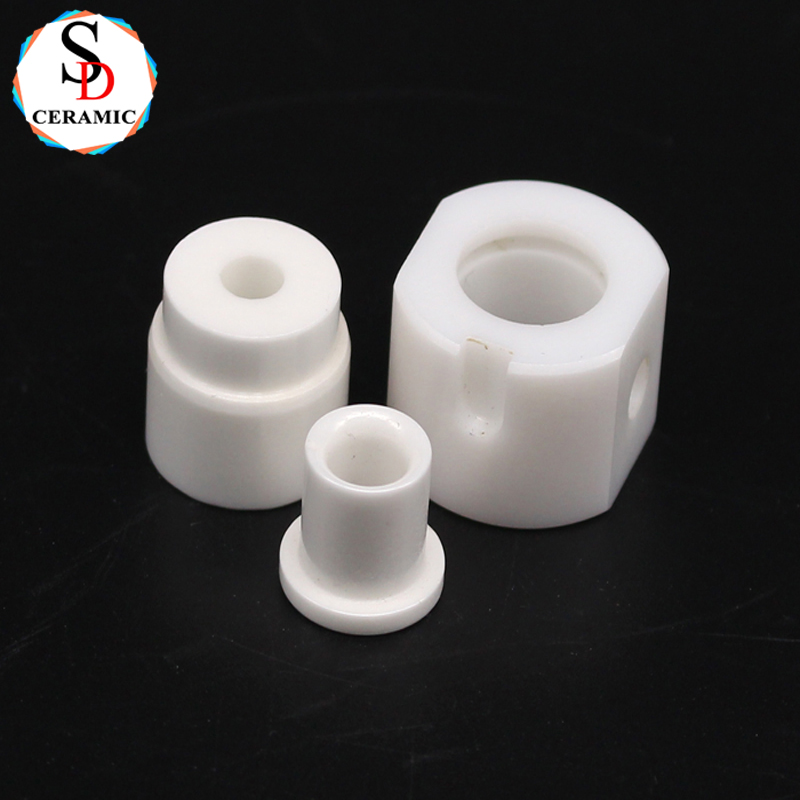

Industrial Engineering Ceramic Molding Alumina Ceramic Parts
Alumina ceramic is a kind of material based on alumina (Al2O3), which is used in thick film integrated circuit. Alumina ceramics have good conductivity, mechanical strength and high temperature resistance. It needs to be noted that ultrasonic cleaning is needed. Because of its superior performance, it has been widely used in modern society, meeting the needs of daily use and special performance.
Yixing Shengda Refractory Ceramic Co., Ltd provide professional OEM & ODM service of 95 Alumina Ceramic Screw Parts with CAD/CAXA/Solidworks software. Alumina Ceramic Sheet Products has high strength and high heat resistance. If you can send us the drawings of Alumina Ceramic Sheet Products, we will provide professional technical consultation. Welcome to visit our factory and we are looking forward to cooperate with you for Alumina Ceramic Sheet Products!
The products of Alumina Ceramic Sheet Products.have ROHS and food test (DGCCRF) Certificate by SGS.
Features
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) High strength
6) Used in all electric products, electric heating products and wear resistant machinery parts.
7) OEM, ODM and OBM are welcomed
Properties | Units | Steatite Ceramic | Cordierite Ceramic | Mullite Ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic | Silicon Nitride |
Colour | White | Yellow | White | White | Ivory | White | Grey | |
Density | g/cm3 | 2.7 | 1.9 | 2.6 | 3.5 | 3.85 | 6 | 3.2 |
Flexural Strength | Mpa | 140 | 30 | 120 | 280 | 340 | 1150 | 600 |
Compressive Strength | MPa | 900 | 350 | 500 | 2100 | 2200 | 2500 | 2500 |
Max Use Temperature | °C | 1000 | 1200 | 1300 | 1400 | 1650 | 1500 | 1800 |
Thermal Condutivity | W(m.K) | 2~3 | 1.3~1.8 | 2~6 | 16~28 | 19~30 | 2.5 | 20 |
Thermal Expansion Cofficient | 10-6/°C | 7 ~ 9 | 1.5~3.5 | 5~6 | 6.5~7.5 | 6~8 | 8~10 | 3~4 |
ThermalShock Resistance | △TC | 100 | 300 | 150 | 140 | 150 | 250 | 600 |
Specific Heat | J/kg.K | 850 | 800 | 900 | 950 | 950 | 500 | 500 |
Dielectric Strength | KV/mm | 20 | — | 30 | 12 | 10 | 5 | 20 |
Dielectric Constant | Er | 6 | — | 8 | 9 | 9 | 12 | 6 |
Product Advantages
● Certificates: ISO & SGS
● OEM & ODM: OEM & ODM service is available
● Strict testing procedures :Meeting the requirements of the product design and process, providing reliable testing data.
● Short Delivery time:If less than 1000 pieces, it only takes around 5 days. We also stock some standard-sized products, if you need urgently, we can delivery very soon.
● Best ex-factory price
● Worldwide customers
● Customized according to needs
● Continuous research and development of new products
● Customer service:If you find some quality problem, please contact us, we’ll deal with it as soon as possible.
Our customers have a wide range of processing choices for transportation mode.
Yixing Shengda Refractory Ceramic Co., Ltd, established in 1995, Yixing, China with an area of 4,000 square meters and fixed assets of over 1 million US dollars, is a professional manufacturer of Steatite Ceramic Parts, Alumina Ceramic Parts, Cordierite Ceramic Parts, Ceramic Band Heater Insulators, Ceramic Terminal Block, Thermostat Ceramic Parts, Zirconia Ceramics Parts, Ceramic Heater Plugs, etc.
Shengda Ceramic equipped with CAD/CAXA/Solidworks software to provide professional OEM & ODM service.
Looking forward to co-operating with the customers from all over the world!
